MAPAL Carbide Coated Drill MEGA-Drill-Reamer (SCD201C) Internal Cooling X5D Blade Diameter 6mm Groove Length 53mm Total Length 91mm Shank Diameter 6mm SCD201C-0600-2-4-140HA05-HP835 1 piece

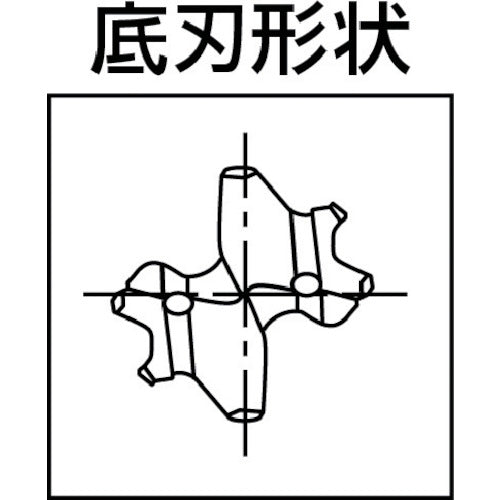

Catalog number: SCD201C-0600-2-4-140HA05-HP835 Features: ● One-shot machining of H7 precision holes with "centering + drilling + reaming", 3 processes can be consolidated into 1 process. ● Excellent centripetal movement due to the distinctive chisel design and combination land. (2 drill cutting blades, 4 reaming blades) ● Ideal for machining positioning holes and knock pin holes. Applications: ● Workpiece: Carbon steel, alloy steel, cast iron, light alloy. Specifications: ● Blade diameter (mm): 6 ● Groove length (mm): 53 ● Total length (mm): 91 ● Shank diameter (mm): 6 ● Effective machining depth: 5D (blade diameter x 5 times) ● Surface treatment: HP835 coating ● H7 tolerance specifications Material / Finish: ● Micro grain carbide
