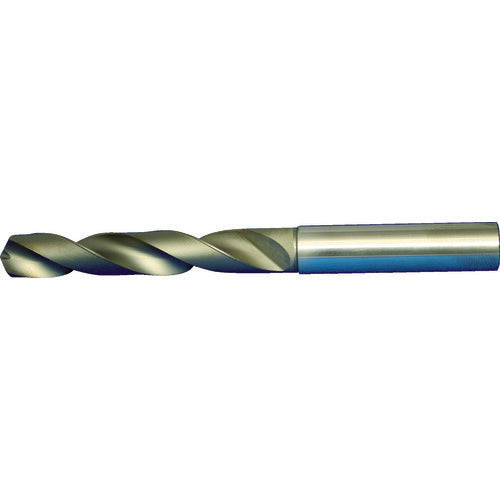

MAPAL Carbide Coated Drill MEGA-Stack-Drill-AF-C/A External Cooling X5D 1/8 inch SCD310-03200-2-2-135HA05-HC619 1 piece

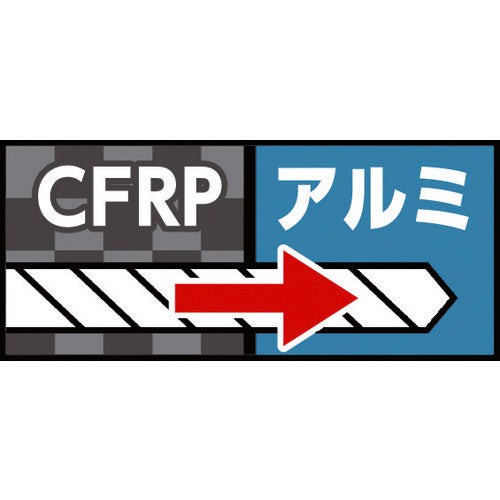

Catalog number: SCD310-03200-2-2-135HA05-HC619 Features: ●Designed to be ideal for drilling holes in stack materials. ●Model designed specifically for stack materials with CFRP inlet and aluminum outlet. ●Prevents burrs and delamination (interlayer peeling). ●Diamond coating with high wear resistance. Applications: ●Cutting material: Stack materials (inlet → CFRP/outlet → aluminum) only. Specifications: ●Blade diameter (mm): 3.2 ●Groove length (mm): 28 ●Total length (mm): 66 ●Shank diameter (mm): 6 ●Effective machining depth: 5D (blade diameter x 5 times) ●Blade diameter (inch): 1/8 ●Surface treatment: HC619/Diamond coating Material/Finish: ●Ultra-fine particle cemented carbide
