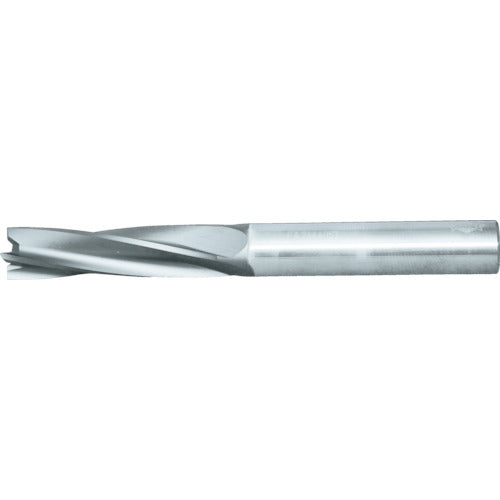

MAPAL OptiMill-Composite (SCM480) Composite End Mill SCM480-1200Z04R-S-HA-HC619 1 piece

MAPAL OptiMill-Composite (SCM480) Composite End Mill SCM480-1200Z04R-S-HA-HC619 1 piece

JAN： 　
Carbide Roughing End Mill Carbide roughing end mill (for aircraft) Cutting Tools Mapal End Mill Z Turning and milling tools
¥78,508
¥78,508
Sale Sold out
Shipping calculated at checkout.
Catalog number: SCM480-1200Z04R-S-HA-HC619 Features: ●Achieves good finishing when machining composite materials such as CFRP. ●The weak twist angle reduces cutting resistance in the thrust direction, reducing burrs and delamination. Applications: ●Workpiece: Composite materials such as CFRP. ●For the aviation industry. Specifications: ●Blade diameter (mm): 12 ●Blade length (mm): 40 ●Total length (mm): 97 ●Shank diameter (mm): 12 ●Number of blades (pieces): 4 ●Surface treatment: HC619 diamond coating ●Twist angle (°): 12.5 Material/Finish: ●Ultra-fine particle cemented carbide
