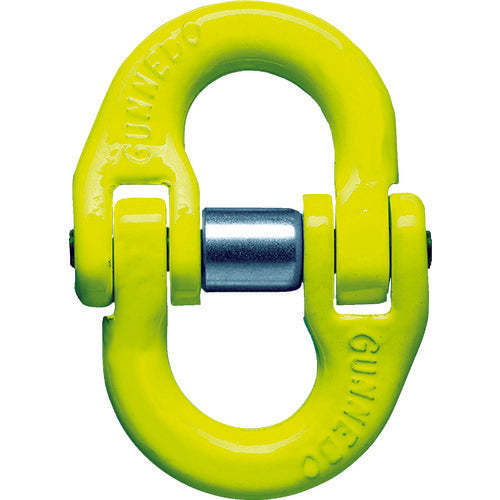

MARTEC Coupling Link GA-22 GA2210 1 piece

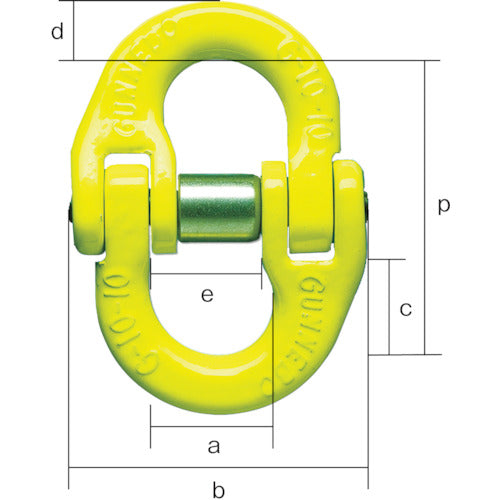

Catalogue number: GA2210 Features: ● Metal fittings for connecting chains to master links, hooks, etc. ● Uses a helical spring for the collar. ● The built-in helical spring allows the fastener to be easily attached and detached with just a hammer, and the pin is securely locked even after repeated use. Uses: ● For connecting chains and metal fittings. Specifications: ● Basic load (t): 16.0 ● Suitable chain wire diameter (mm): 22 ● Dimension (mm) a: 60 ● Dimension (mm) b: 142 ● Dimension (mm) c: 55 ● Dimension (mm) d: 28 ● Dimension (mm) e: 50 ● Dimension (mm) p: 152 Material/Finish: ● Special alloy steel
