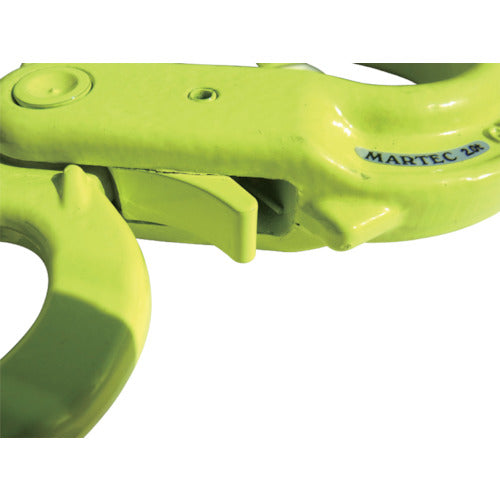

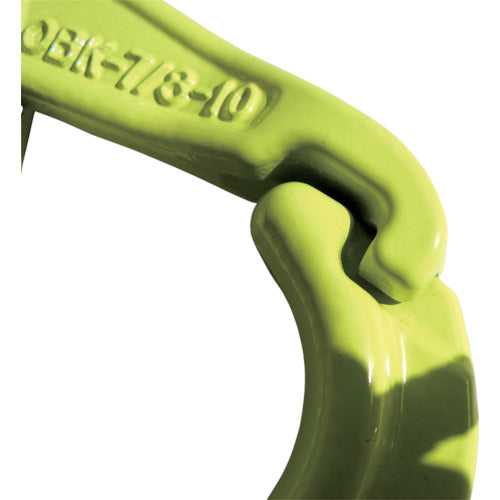

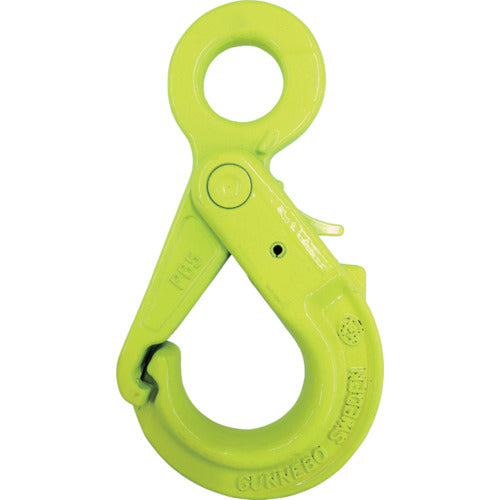

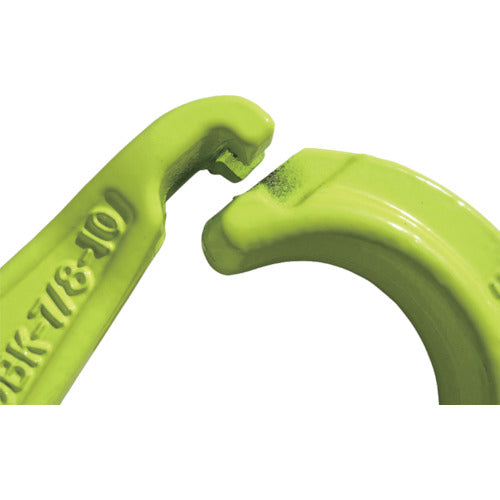

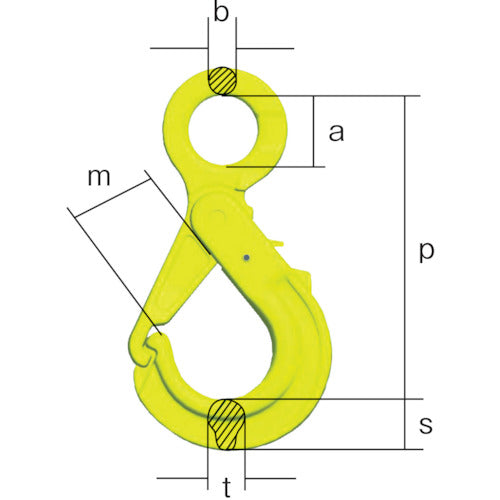

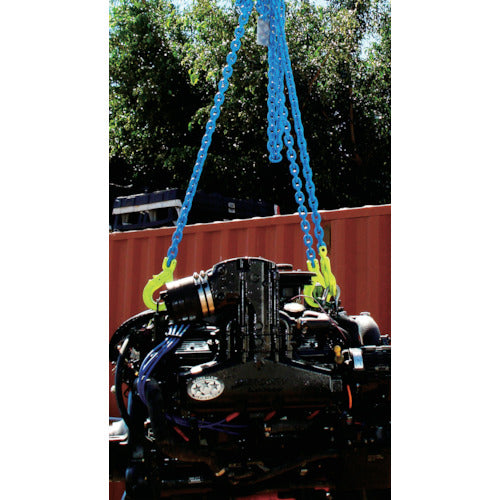

Catalog number: OBK-10-10 Features: ●The hook and latch are integrated into a shape that interlocks with each other, preventing the latch from swaying sideways and enhancing safety. ●Includes a danger avoidance indicator that prevents the hook and latch from interlocking when the hook is stretched due to excessive load. ●Includes a danger avoidance indicator that prevents the hook and latch from interlocking when the hook is stretched. Applications: ●End fitting for slinging wire ropes, chains, etc. Specifications: ●Basic load capacity (t): 3.2 ●Applicable chain wire diameter (mm): 10 ●Dimensions (mm) H: 29 ●Dimensions (mm) m: 47 ●Dimensions (mm) p: 170 ●Dimensions (mm) s: 29 ●Dimensions (mm) t: 22 ●Breaking load (kN): 157 ●Dimensions (mm) b: 13 ●Dimensions (mm) a: 34
