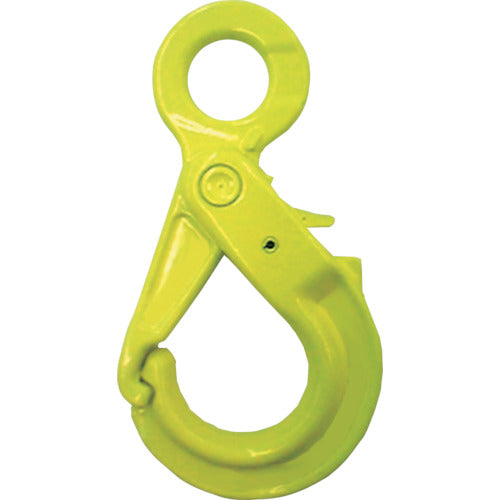

MARTEC Grip Latch Hook OBK-18/20 OBK-18/20-10 1 piece

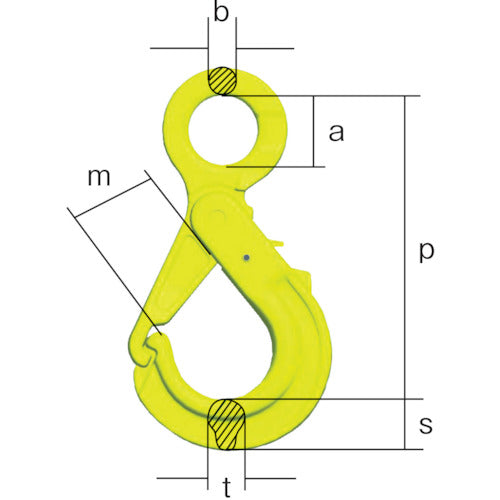

Catalog number: OBK-18/20-10 Features: ●The hook and latch are integrated into a shape that interlocks with each other, preventing the latch from swaying sideways and enhancing safety. ●Includes a danger avoidance indicator that prevents the hook and latch from interlocking when the hook is stretched due to excessive load. ●Includes a danger avoidance indicator that prevents the hook and latch from interlocking when the hook is stretched. Applications: ●End fitting for slinging wire ropes, chains, etc. Specifications: ●Basic load capacity (t): 10.0 ●Applicable chain wire diameter (mm): 20 ●Dimensions (mm) a: 60 ●Dimensions (mm) b: 22 ●Dimensions (mm) m: 74 ●Dimensions (mm) p: 294 ●Dimensions (mm) s: 56 ●Dimensions (mm) t: 44 ●Dimensions (mm) b: 22 ●Dimensions (mm) a: 60
