MARTEC Insulated Swivel Set O-LI-N-13 O-LI-N-13 1S

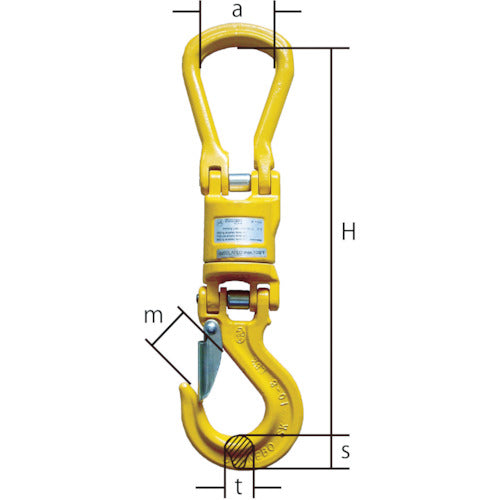

Catalogue number: O-LI-N-13 Features: ● With an insulation capacity of 1000V, welding work can be performed safely while the workpiece is suspended. Applications: ● For welding work while the workpiece is suspended with an overhead crane or electric chain block. Specifications: ● Basic load capacity (t): 4.2 ● Suitable chain wire diameter (mm): 13 ● Dimensions (mm) A: 72 ● Dimensions (mm) H: 410 ● Dimensions (mm) m: 42 ● Dimensions (mm) s: 36 ● Dimensions (mm) t: 28 ● Dimensions (mm) a: 72 ● With swivel function and anti-detachment fittings Material/Finish: ● Special alloy steel
