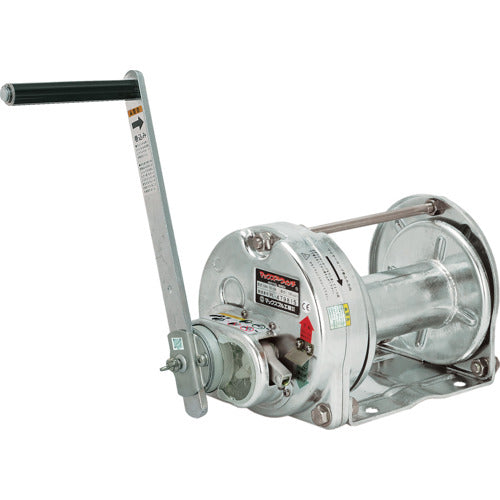

MAXPULL Manual Winch (with hot-dip galvanized coating) GM-10-GS 1 unit

Catalog number: GM-10-GS Features: ●Aiming at salt resistance and rust prevention, this winch is less expensive than stainless steel. ●The handle is turned. ●The steel body surface is hot-dip galvanized, and the bolts and nuts are made of SUS-304, making it highly salt-resistant and rust-resistant. ●The mechanical brake has a double safety mechanism, so it will not go into no-brake mode even if the claw arm receives an impact. Applications: ●When installed at the seaside. ●General weather-resistant winch for marine use. Specifications: ●Maximum capacity (t): 1.0 ●Reduction ratio: 1/12.60 ●Wire winding capacity (mm x m): 8 x 35 ●Width (mm): 210 ●Depth (mm): 385 ●Height (mm): 211 ●Handle length (maximum effective value) (mm): 300 ●Mechanical brake type ●Hot-dip galvanized type ●360° rotation Material/Finish: ●Body: Steel (hot-dip galvanized) ●Stay bolts, bolts and nuts, screws, retaining rings, springs: Stainless steel (SUS304) Note: ●Wire rope is not included. Please prepare separately.
