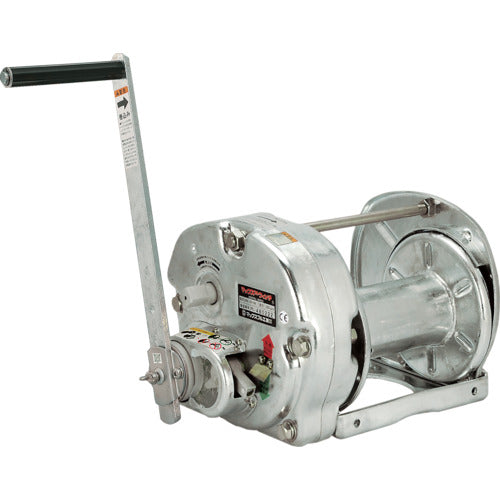

MAXPULL Manual Winch (with hot-dip galvanized coating) GM-20-GS 1 unit

Catalog number: GM-20-GS Features: ●Aiming at salt resistance and rust prevention, this winch is less expensive than stainless steel. ●The handle is turned. ●The steel body surface is hot-dip galvanized, and the bolts and nuts are made of SUS-304, making it highly salt-resistant and rust-resistant. ●The mechanical brake has a double safety mechanism, so it will not go into no-brake mode even if the claw arm receives an impact. Applications: ●When installed at the seaside. ●General weather-resistant winch for marine use. Specifications: Maximum capacity (t): 2.0 Reduction ratio: 1/4 (fast winding) / 1/20 (normal winding) Wire winding amount (mm x m): 9 x 38 Width (mm): 280 Depth (mm): 432 Height (mm): 250 Handle length (maximum effective value) (mm): 370 Mechanical brake type Hot-dip galvanized type 360° rotation Material/Finish: Body: Steel (hot-dip galvanized) Stay bolts, bolts and nuts, screws, retaining rings, springs: Stainless steel (SUS304) Note: Wire rope is not included. Please prepare separately.
