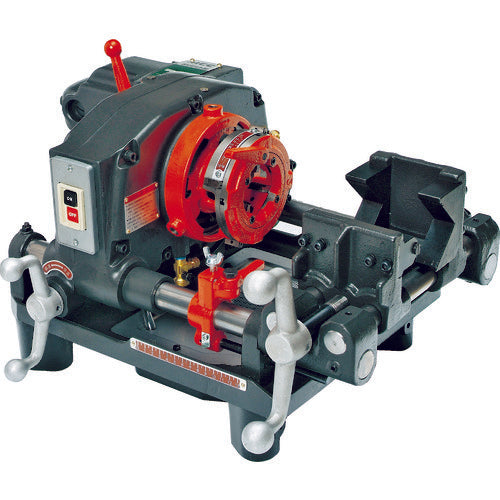

MCC Conduit Machine MCC82 CMM0003 1 unit

Catalog number: CMM0003 Features: ●This machine is designed specifically for electric conduits, with a rotating die head that does not move the pipe, making it easy to thread curved pipes. ●The spindle speed can be adjusted over a wide range from about 18 rpm to 110 rpm depending on the load, allowing for optimal rotation. ●At a high speed of 110 revolutions per minute (unloaded), it can do three times the work of conventional machines. ●Cutting oil comes out from inside the die head, so it does not scatter. ●Just set the lever fixing base in the specified position to cut a screw of any length, and the die head will automatically open when the thread is cut. ●Comes with a chip cover to prevent chips from scattering. ●The die head can be removed with one touch, making it easy to change sizes. Specifications: ●No-load speed (rpm): 40, 110 ●Power supply (V): 100 ●Power consumption (W): 750 ●Power cord length (m): 2.4 ●Standard die heads: CMDA004, CMDB008 ●Standard chasers: PF1/2-3/4, 1-1 1/2, 2-3, C19-31, 39-51, 63-75 ●Width (mm): 460 ●Depth (mm): 350 ●Height (mm): 280 ●Thread cutting capacity (A): Thick steel PF (1/2-3), thin steel C (15-75) ●Carbon brush part number: P1433254S ●Motor: Series
