MK Frame-mounted heavy-duty truck 150mm L-type C-1150-150 1 unit

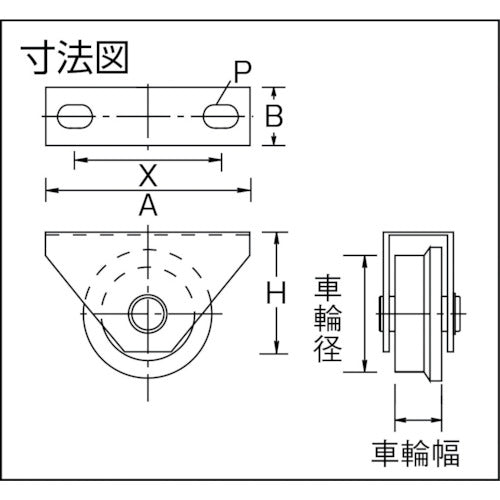

Catalog number: C-1150-150 Features: ● The wheels are made of ductile cast iron, which is stronger than ordinary cast iron. Applications: ● For trolleys. Specifications: ● Allowable load (daN): 1078 ● Allowable load (kgf): 1100 ● Wheel diameter (mm): 130 ● Wheel width (mm): 43 ● Mounting height H (mm): 155.0 ● Mounting seat A (mm): 250 ● Mounting seat B (mm): 60.0 ● Mounting pitch X (mm): 185 ● Mounting hole diameter P (mm): 35 x 20 ● Allowable load (N): 10785 Materials/Finish: ● Frame: Steel ● Frame surface treatment: Trivalent chromium plating finish ● Wheels: Ductile cast iron (FCD-450) Note: ● The allowable load is a reference value in the vertical direction.
