MK framed weight vehicle 120mm C-type C-1350-120 1 unit

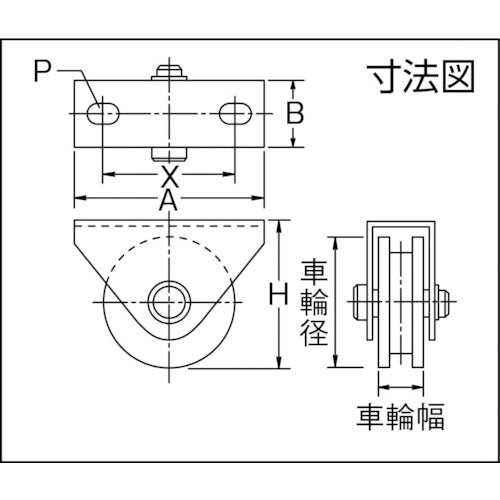

Catalog number: C-1350-120 Features: ● The wheels are made of ductile cast iron, which is stronger than ordinary cast iron. Applications: ● For flat bars. Specifications: ● Allowable load (daN): 490 ● Allowable load (kgf): 500 ● Wheel diameter (mm): 120 ● Wheel width (mm): 28 ● Mounting height H (mm): 125.5 ● Mounting seat A (mm): 145 ● Mounting seat B (mm): 39.5 ● Mounting pitch X (mm): 115 ● Mounting hole diameter P (mm): 15 x 11 ● Allowable load (N): 4902 Materials/Finish: ● Frame: Steel ● Frame surface treatment: Trivalent chromium plating finish ● Wheels: Ductile cast iron (FCD-450) Note: ● The allowable load is a reference value in the vertical direction.
