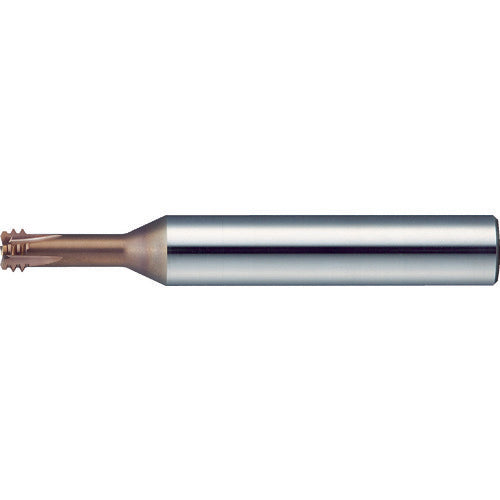

MOLDINO Epoch D Thread Mill EDT-1 0-15-TH EDT-1.0-15-TH 1 unit

Catalog number: EDT-1.0-15-TH Features: ●One tool can simultaneously drill pilot holes and threads in high-hardness materials with a hardness of 45HRC or more. ●The high-strength blade design suppresses damage to the cutting edge in harsh machining environments with high-hardness steel. Applications: ●Workpiece: High-hardness materials with a hardness of 45HRC or more. Specifications: ●Nominal size: M6 ●Pitch (mm): 1 ●Blade diameter (mm): 4.6 ●Total length (mm): 50 ●Number of blades (pieces): 4 ●Shank diameter (mm): 6 ●Neck length (mm): 15 ●Surface treatment: TH coating ●PN coating for types requiring pilot holes ●Thread depth: Up to 2.5 times the blade diameter Material/Finish: ●Carbide
