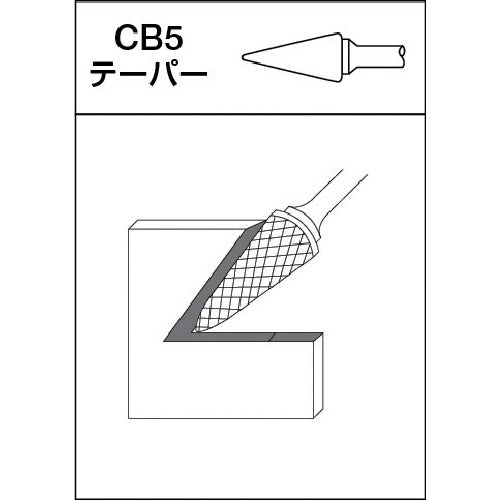

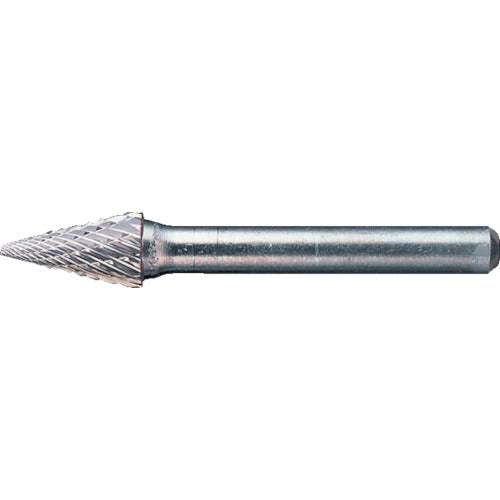

Catalog number: CB5C102 Features: ● Carbide bar with shank diameter of 6 mm. ● This is the most commonly used shape. ● Compared to spiral cut, the cutting resistance is smaller and the chips discharged are in powder form. ● Chattering (vibration) can be minimized. Specifications: ● Shape: Tapered type (cross cut) ● Blade diameter (mm): 6 ● Blade length (mm): 19 ● Shaft diameter (mm): 6 ● Shaft length (mm): 31 ● Angle (°): 14 ● Type: All carbide ● Maximum operating speed (rpm): 28000 Caution: ● Always wear protective equipment such as a hard hat and safety glasses when working. ● The maximum operating speed is a recommended value.
