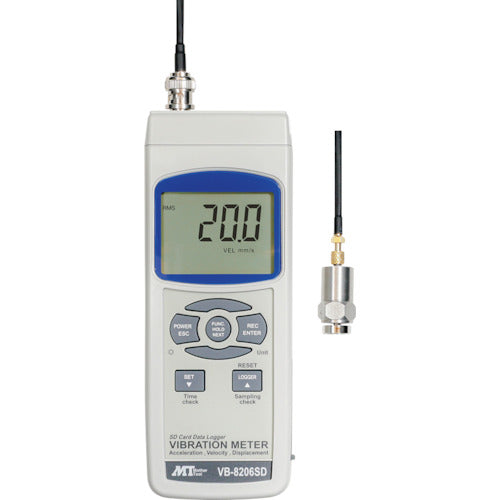

MT Data Logger Digital Vibration Meter VB-8206SD 1 piece

Catalog number: VB-8206SD Features: * Data logger vibration meter that can record to an SD card inserted in the main unit * Recorded data can be imported into software such as Excel as a CSV file * LCD backlight included * Real-time data transfer to a PC is possible using the separately sold software (SW-U801), USB cable (USB-01), or RS232C cable (UPCB-02) * Capable of measuring "velocity," which indicates the speed of vibration and the magnitude of vibration energy * Capable of measuring "acceleration," which indicates the magnitude of the impact force caused by vibration * Capable of measuring "displacement," which indicates the magnitude of the width (distance) by which the measured object changes due to vibration * Equipped with peak value measurement function that displays the maximum vibration value over a certain period of time * Equipped with root mean square (RMS) measurement function that displays the average vibration value over a certain period of time * Equipped with low battery function that notifies you with an illustration on the LCD when the battery level is low Specifications: ●Acceleration measurement range (m/s2): 0.5 to 199.9 ●Velocity measurement range (m/s): 0.5 to 199.9 ●Displacement measurement range (mm): 0.001 to 1.999 ●Power supply (V): 6 AA batteries (1.5V) or DC9V (※AC adapter sold separately) ●Width (mm): 76 ●Depth (mm): 38 ●Height (mm): 203 ●Power supply: 6 AA batteries (1.5V) or DC9V (※AC adapter sold separately) ●Relative sensitivity ISO2954 compliant ●Data logger capable of recording vibration measurement values ​​Set contents/accessories: ●Sensor with magnetic base ●Hard case ●SD card (8GB) ●6 AA batteries (1.5V) (trial batteries) ●Instruction manual
