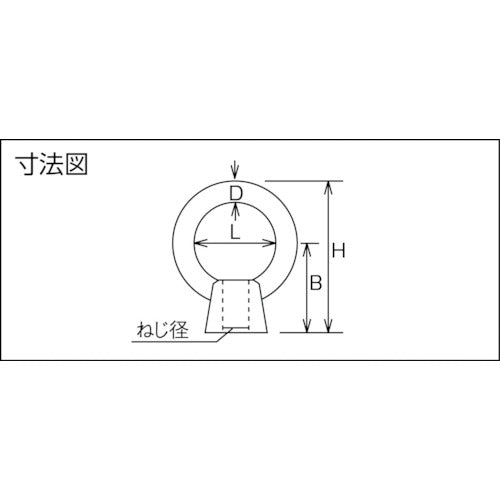

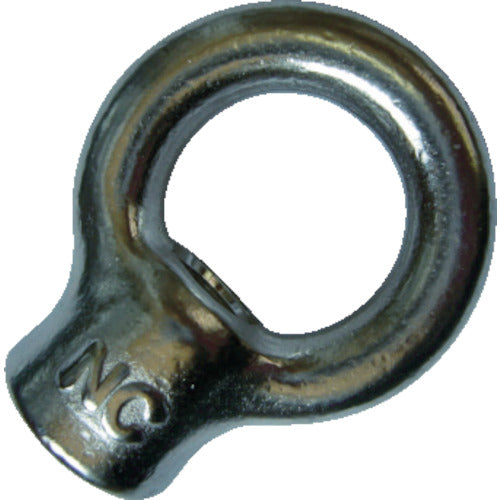

Catalog number: EN9000020 Features: ● A nut with an integrated ring, manufactured by hot forging. Applications: ● Lifting heavy objects such as civil engineering, construction, shipbuilding, molds, and machinery equipment. Specifications: ● Basic load capacity (t): 0.63 ● Load capacity (kN): 6.18 ● Screw diameter: M20 ● D (mm): 16 ● L (mm): 40 ● H (mm): 86 ● A (mm): 72 ● B (mm): 50 ● Electrolytic polishing finish with solidification heat treatment ● Forged product ● Made in Japan Material/Finish: ● Stainless steel (SUS304)
