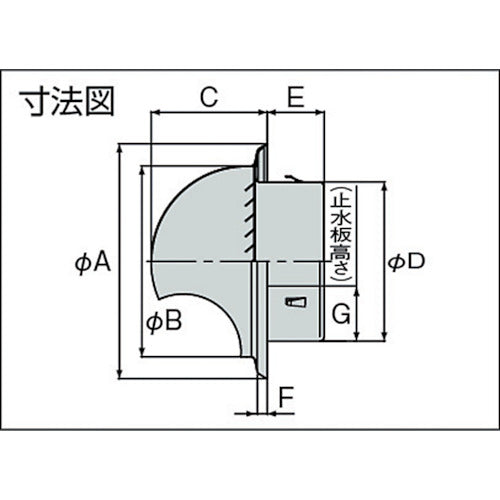

Catalog number: KS-100SHG-AMI Features: ●Equipped with insect screen, making it difficult for insects to get in. ●Equipped with a hood, making it difficult for insects to get inside even when it rains. Uses: ●For natural ventilation. Specifications: ●Color: Hairline ●Applicable pipe inner diameter (mm): 100 ●A (mm): 148.5 ●B (mm): 122 ●C (mm): 74 ●D (mm): 96.5 ●E (mm): 45 ●Diameter (mm): 148.5 ●G (mm): 22 ●F (mm): 8 ●Equipped with insect screen ●Equipped with water stop plate Material/Finish: ●Stainless steel (SUS304) Caution: ●Do not use for forced ventilation.
