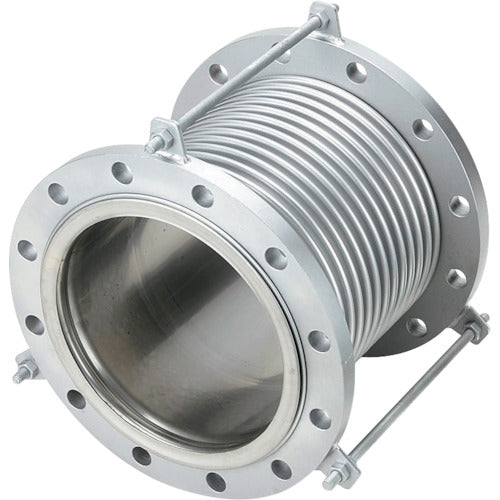

NK Exhaust Line Expansion Joint Flange 5K/SS400 (Liquid Contact Part SUS) 125A x 200L NK-7300/5K-SS400-125A-200L 1 Piece

Catalog number: NK-7300/5K-SS400-125A-200L Features: ●The flanges on both ends are loose type. ●The liquid contact parts are stainless steel. ●We can also accommodate diameters and lengths other than those listed. Applications: ●To absorb heat-induced expansion of piping. ●For absorbing vibrations. Specifications: ●Nominal diameter A: 125 ●Nominal diameter B: 5 ●Total length (mm): 200 ●Maximum operating pressure (MPa): 0.2 ●Operating temperature range (℃): -20 to 450 ●Compatible fluids: air and exhaust gas (limited to non-corrosive fluids) ●Connection method: flange connection (JIS5K) Material/Finish: ●Bellows part: stainless steel (SUS304) ●Flange part: carbon steel (SS400)
