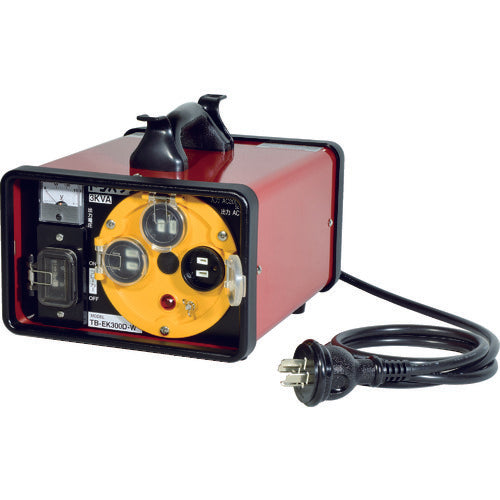

NICHIDO Outdoor Step-Down Transformer, Drip-Proof, Single-Wound, with Rainproof Cap, 3KVA, TB-EK300DW, 1 Unit

Catalog number: TB-EK300DW Features: ● Steps down three-phase 200V to single-phase 100V. ● Outdoor-use dedicated step-down transformer. ● Equipped with an overload and earth leakage breaker, so you can rest assured even in the event of an emergency. Usage: ● For use in humid or dusty locations Specifications: ● Capacity (kVA): 3 ● Input/Output (V): 200/100 x 3 ● Capacity (kVA) 1-hour rating: 3 ● Capacity (kVA) 30-minute rating: 3 ● Capacity (kVA) continuous rating: 3 ● Protection function: Overload leakage circuit breaker (15A/15mA sensitivity) ● Primary wire specifications: VCT2.0mm[[squared]] x 3C x 2m ● Number of output outlet specifications: 3 ● Type: For step-down only ● Size W (mm): 260 ● Size D (mm): 215 ● Size H (mm): 230 ● Output: Single-phase 100 x 3 (with rainproof cap) ● Input plug: Three-phase 200V grounded 3P 20A ● For outdoor use Materials/Finish: ● Body: Steel ● Handle: PF resin ● Wire: VCT2mm[[*2]] x 3 cores Caution: ● In rainy weather, the amount of rain is light. Do not use in locations subject to heavy rain or large amounts of droplets.
