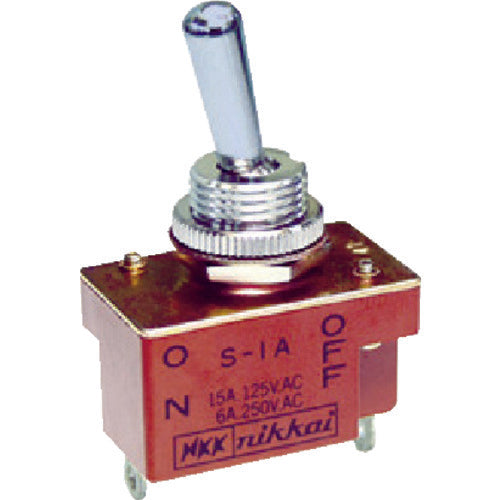

NKK Switches Toggle Switch Solder Terminal Single Pole ON-OFF S-1A 1 pc

Catalog number: S-1A Features: ●Basic type of toggle switch (S series). Applications: ●Toggle switch for power supply equipment. Specifications: ●Number of circuits: Single pole single throw (2P) ●Bushing size: M12 ●Mounting hole dimensions (mm): φ12.5 ●Contact resistance: 10mΩ or less (at DC2-4V 100mA) ●Insulation resistance: DC500V, 1000MΩ or more ●Rating: AC125V-15A, AC250V-6A, DC30V-20A, (Inductive load: AC125V-8A) ●Mounting hole dimensions: φ12.5mm ●Solder terminal Material/Finish: ●Lever: Copper alloy ●Case: Melamine phenol resin Note: ●A dial plate with ON-OFF indication is available separately AT-215
