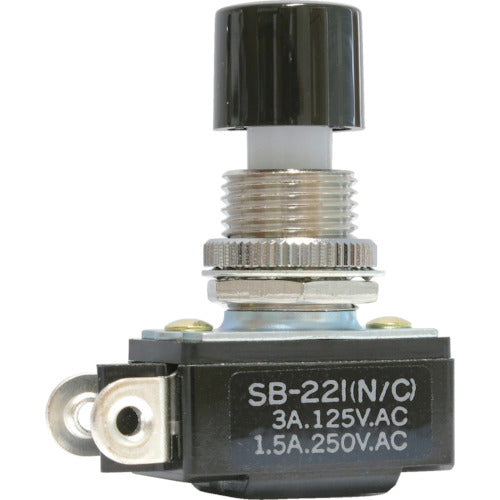

NKK Switches Push Button Switch Solder Terminal Single Pole ON-(OFF) SB-221N/C 1 pc

Catalog number: SB-221N/C Features: ● Momentary type push switch. ● Right angle type. Applications: ● Switching push button switch. Specifications: ● Number of circuits: Single pole single throw (2P) ● Functional operation: ON-(OFF) ● Bushing size: M12 ● Mounting hole dimensions (mm): φ12.5 ● Contact resistance: 10mΩ or less (at DC2-4V 100mA) ● Insulation resistance: DC500V, 1000MΩ or more (200MΩ or more) ● Rating: AC125V-3A, AC250V-1.5A ● Momentary type ● Mounting hole dimensions: φ12.5mm ● Solder terminal Material/Finish: ● Button: PBT resin ● Case: Phenol resin Set contents/Accessories: ● Operation unit AT-414-K (φ13.2 round black button) comes standard
