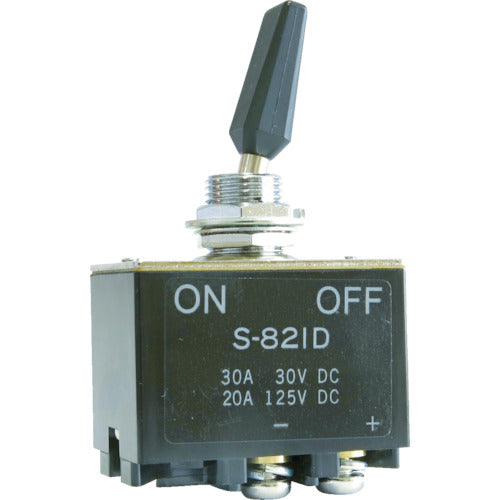

NKK Switches DC Load Toggle Switch (for solar power generation, DC 400V compatible) S-821D 1 piece

Catalog number: S-821D Features: ● Small plastic molded lever type toggle switch. ● For DC loads only. ● ON-OFF toggle switch. Applications: ● For DC power supplies. ● For solar power generation. (DC400V compatible) Specifications: ● Number of circuits: 2-pole single throw (4P) ● Functional operation: ON-OFF ● Bushing size: M12 ● Mounting hole dimensions (mm): φ12.5 ● Contact resistance: 10mΩ or less (at DC5V 1A) ● Insulation resistance: DC500V, 1000MΩ or more ● Ratings: DC30V-30A, DC48V-30A, DC125V-20A, DC250V-15A, DC400V-4A (10A when wired in series) ● Mounting hole dimensions: φ12.5mm ● Screw terminals Material/Finish: ● Lever: PBT resin ● Case: Melamine phenol resin
