(株)亀嶋鐵工所

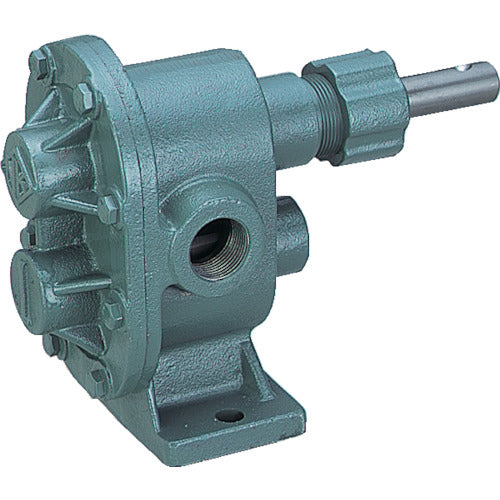

NK Gear Pump, Standard Single Wheel Type, No Motor, KA-01, 1 Unit
NK Gear Pump, Standard Single Wheel Type, No Motor, KA-01, 1 Unit
Regular price
¥13,754
Regular price
Sale price
¥13,754
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

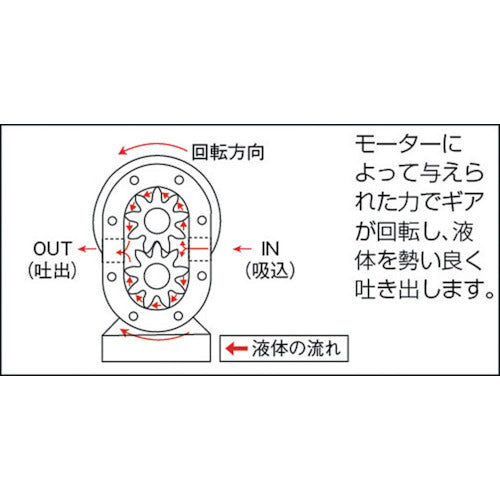

Catalog number: KA-01 Features: ● All models use our proprietary involute tooth gear. ● All bore sizes use phosphorus bronze oil-impregnated metal for the bearings, resulting in smooth rotation and excellent durability. ● Pump body only. (Pulley not included) Applications: ● Transfer of oils such as lubricating oils. Specifications: ● Discharge volume (L/min): 4-5 ● Bore size: 1/8 inch (6A) ● Overall width (mm): 65 ● Overall length (mm): 130 ● Overall height (mm): 100 ● Maximum pressure (MPa): 0.3 ● Rotation speed (rpm): 600 ● Normal pressure: 0-0.2MPa ● Viscosity used: 50-500mm2/S ● Operating temperature: 60°C or less Material/Finish: ● Cast iron
View full details
