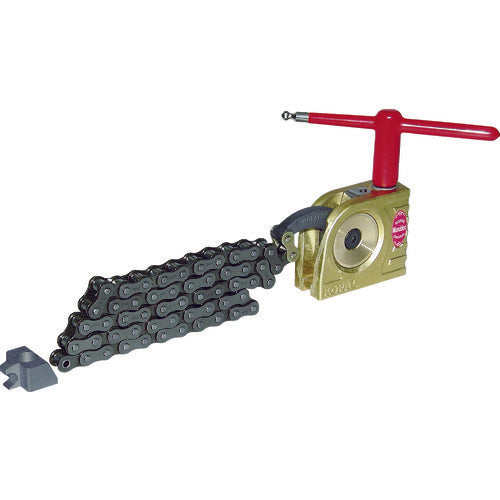

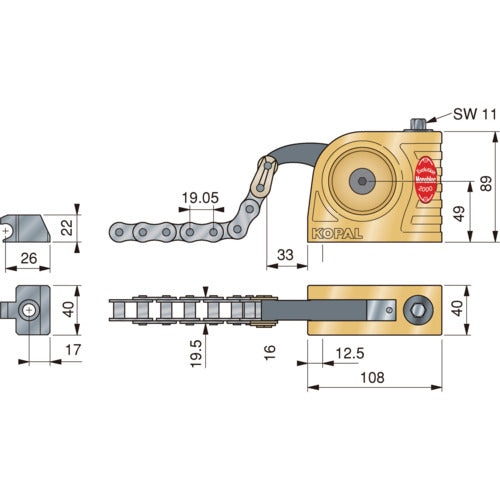

Catalog number: KM06-040 Features: ● Chain clamping allows you to apply a uniform clamping force to the entire workpiece, making it easy to fix large workpieces while preventing distortion. ● Using a 16000N monoblock, you can quickly and powerfully clamp the workpiece by rotating the clamp key. ● Uses a T-slot table and modular table. Applications: ● Clamping pipes, etc. Specifications: ● Width (mm): 40 ● Height (mm): 89 ● Clamping force (N): 16000 ● Depth (mm): 108 ● Arm length (mm): 33 ● Chain length (m): 1 ● Arm length (mm): 33 Set contents/accessories: ● Monoblock, chain (width 19.05mm), chain connection block, chain clip, clamping key (fixing screws sold separately)
