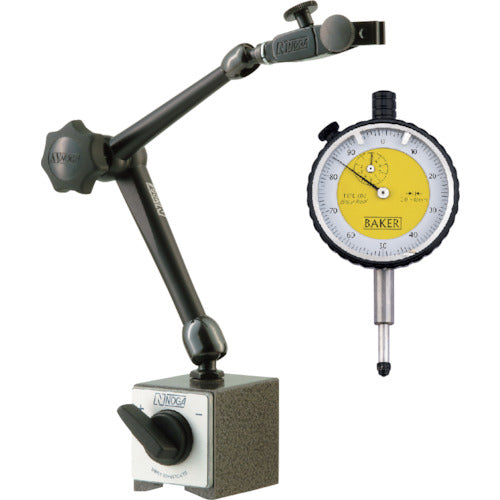

NOGA Noga Holder & Baker Gauge (DG61003 + BGK02) BGKDG7150 1 unit

Catalog number: BGKDG7150 Features: ● A set of a standard dial gauge with a graduation of 0.01 mm and a holder with a magnet. ● The holder has a tip micro-feed mechanism, making it easy to align the gauge needle to the zero point. ● By tightening the knob in the center of the holder, the three joints are locked at the same time, making it easy to fix the gauge in any position. Applications: ● For comparative measurements of parallelism, flatness, concentricity, etc. Specifications: ● Measurement range (mm): 0-10 ● Minimum display (mm): 0.01 ● Scale specifications: 0-100 ● Mounting shaft diameter (mm): 8 ● Measuring force (N): 1.5 or less ● Dial diameter (mm): 56 ● Arm length (mm): 282 ● Fine adjustment mechanism: Yes ● Base dimensions (mm): 50 x 60 x 55 ● Dial gauge: BGK02 ● Scale (mm): 0.01 ● Holder: DG61003 ● Arm length (bottom x top) (mm): 110 x 101 ● Total arm length (including tip) (mm): 282 ● Magnet width (mm): 50 ● Magnet depth (mm): 60 ● Magnet height (mm): 55 ● Magnetic force (kgf.): 80 ● Measuring instrument mounting: φ6mm, φ8mm, φ3/8mm holes, dovetail groove Set contents/accessories: ● Dial gauge: BGK02 ● Holder: DG61003
