ノガ社

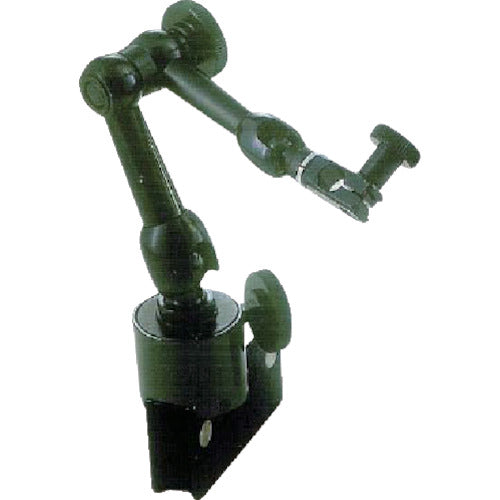

NOGA Flex NF1030 1 piece
NOGA Flex NF1030 1 piece
Regular price
¥24,750
Regular price
Sale price
¥24,750
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: NF1030 Features: * By tightening the knob in the center, the three joints are firmly locked. * This excellent mechanism allows you to align the dial gauge to zero without shaking just above the magnet, and can rotate 360°. Specifications: * Adhesive force (N): 280 * Magnet width (mm): 16 * Magnet depth (mm): 60 * Magnet height (mm): 32 * Arm length: 56 x 51 mm * Measuring instrument attachment: φ8 mm hole, dovetail adapter (6 x 8 mm) included * 28 kgf permanent magnet included * Omnidirectional hand-held fine adjustment mechanism included
