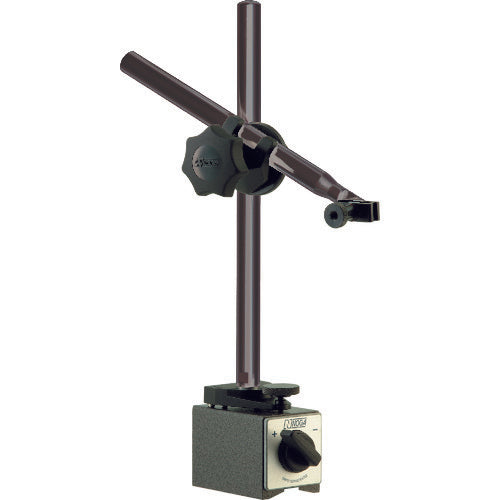

NOGA Magnetic Stand Heavy Duty Clamp Type Dial Gauge PH4016 1 pc

Catalog number: PH4016 Features: ●The micro-feed mechanism at hand allows for quick zero-point alignment of the gauge. ●A pillar-type holder that securely locks the secondary pillar with a special three-point clamp. ●The rotating clamp at the end of the arm has 6, 8 mm, and 3/8 inch holes and a dovetail groove. It is also easy to attach dial gauges with lugs. Applications: ●Holding device for test indicators and dial gauges. Specifications: ●Adhesive force (N): 1000 ●Magnet width (mm): 50 ●Magnet depth (mm): 75 ●Magnet height (mm): 55 ●Main pillar mounting screw: M8 x P1.25 ●Main pillar: φ16 x 260 mm ●Support: φ16 x 225 mm ●Measuring instrument mounting: 6 mm, 8 mm, and 3/8 inch holes, with dovetail groove, with lugs
