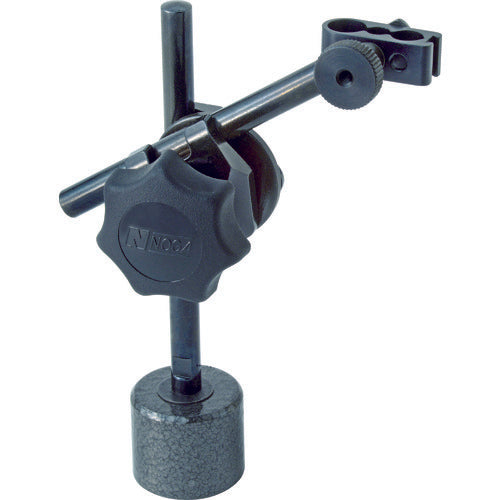

NOGA Magnetic Stand PH Mini Holder PH5000 1 piece

Catalog number: PH5000 Features: ● A pillar-type holder that strongly locks the secondary pillar with a special three-point clamp. Specifications: ● Adhesive force (N): 200 ● Magnet width (mm): 30 ● Magnet depth (mm): 30 ● Magnet height (mm): 25 ● Main pillar mounting screw: M5 x P0.8 ● Arm length (mm): 110 x 110 ● Magnet diameter (Φ) x height (mm): 30 x 25 ● Main pillar: φ8 x 110mm ● Pillar: φ8 x 110mm ● Measuring instrument mounting: 6mm, 8mm, 3/8 inch holes, with dovetail groove, with lugs
