NOGA Minicool MC1900 1S

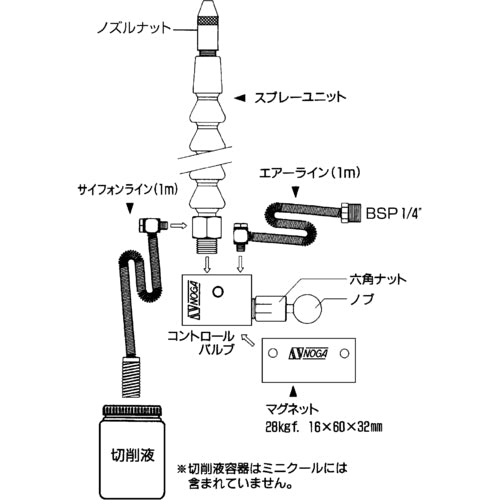

Catalog number: MC1900 Features: * Cooling device that sucks up cutting fluid with the power of air and sprays it in mist form. The amount of air sprayed can be adjusted with the control valve, and the amount of coolant with the nozzle. An extremely good cooling effect is achieved while blowing away cutting chips with air. Applications: * For lubrication during processing such as drill presses, tapping machines, general-purpose milling machines, lathes, special-purpose machines, grinding machines, punching, bending, etc. Specifications: ● Number of nozzles: 1 ● Nozzle length (mm): 320 ● Hole diameter (mm): φ2 ● Suction force (N): 280 ● Air intake port: BSP1/4 ● Nozzle inner diameter (mm): φ2 ● Valve: Yes ● Suitable fluids: Water-soluble cutting fluid, oil-based cutting fluid, air ● Maximum fluid pressure (kg/cm2): 3.46 ● Air pressure (MPa) (kg/cm2): 0.098-0.98 (1-10) ● Magnet ● Spray unit length (mm): 320 ● Nozzle hole diameter (mm): φ2 ● MC1400, MC1900, MC2900: 28kgf, with permanent magnet ● MC3000: 32kgf, with on-off magnet ● Suitable fluids: Water-soluble cutting fluid, oil-based cutting fluid, air ● Siphon line: 1m (for cutting fluid) ● Air line: 1m (for air) Note: ●Make sure the coolant level is lower than the Mini Cool nozzle position.
