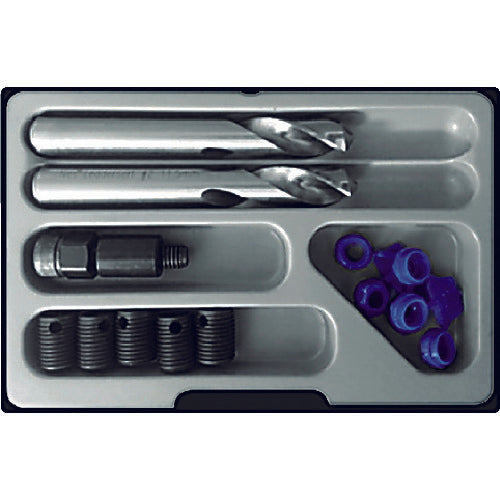

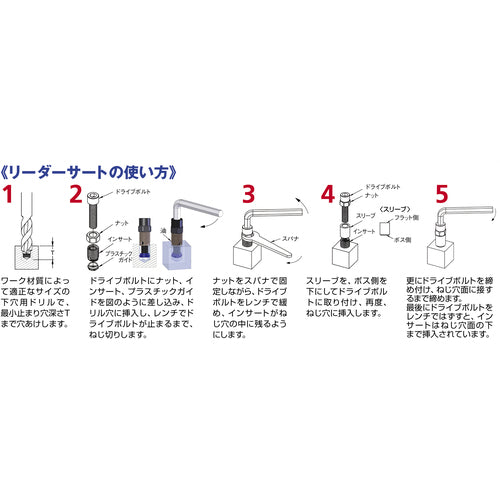

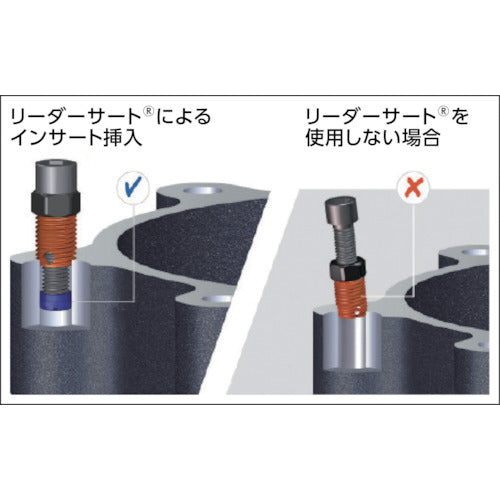

Catalogue number: LS10238 Features: ●A revolutionary system that does not require taps to repair female threads. ●When inserting an insert by tapping directly into a pilot hole with a threaded insert, attaching a plastic guide to the tip allows the insert to be inserted straight. (PAT.PEND) Applications: ●For repairing and reinforcing female threads. ●For metric threads. Specifications: ●Usage range: M10 x 1.5 ●Pilot hole drill dimensions (mm) for iron: 14.0 ●Pilot hole drill dimensions (mm) for non-ferrous metals: 13.75 ●Minimum blind hole depth (mm): 21 Set contents/accessories: ●Pilot hole drill (1 for aluminum, cast iron) (1 for steel) ●5 self-tapping inserts ●6 plastic guides ●1 drive bolt & nut each ●1 sleeve
