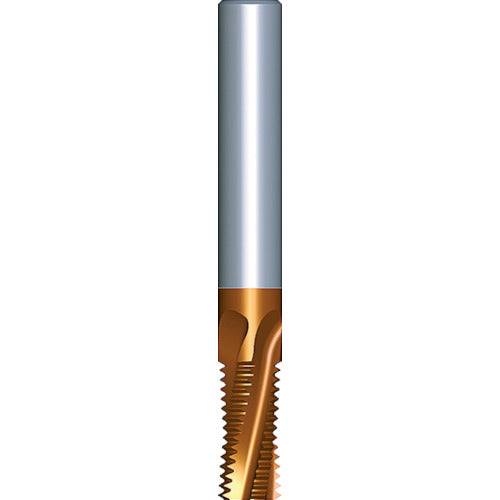

NOGA Solid Carbide Mill Thread BSP 0808C14 19BSPT MT-7 1 piece

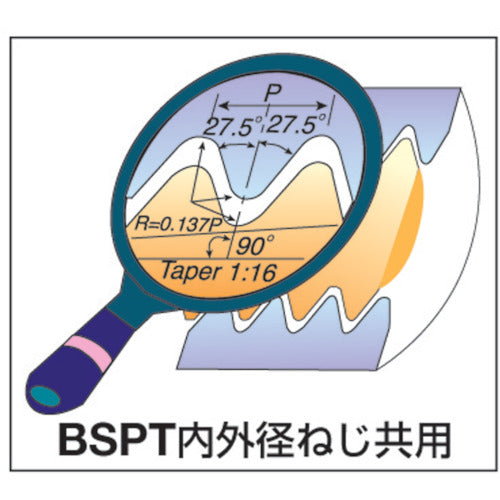

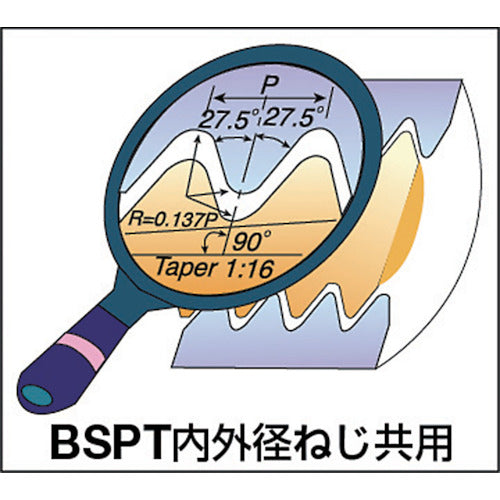

Catalog number: 0808C14 19BSPT MT-7 Features: ●Thread processing can be done in one pass. ●Effective threads can be cut to the corners of blind holes. ●Threads of different diameters and the same pitch can be processed with one tool, regardless of whether they are right-handed or left-handed. ●The spiral blade produces a clean finish. Applications: ●Cutting materials: carbon steel, alloy steel, stainless steel, cast steel, cast iron. ●Carbide thread cutting tool. Specifications: ●Nominal size: RC1/4-3/8 ●Number of teeth: 19 ●Blade diameter (mm): 8.0 ●Blade length (mm): 14.0 ●Total length (mm): 64 ●Number of blades (pieces): 3 ●Shank diameter (mm): 8 ●Surface treatment: Aluminum titanium nitride (TiAlN) multi-layer coating (MT7) ●Thread: Pipe taper thread for both internal and external diameters (BSPT) Material/Finish: ●Ultra-fine grain carbide
