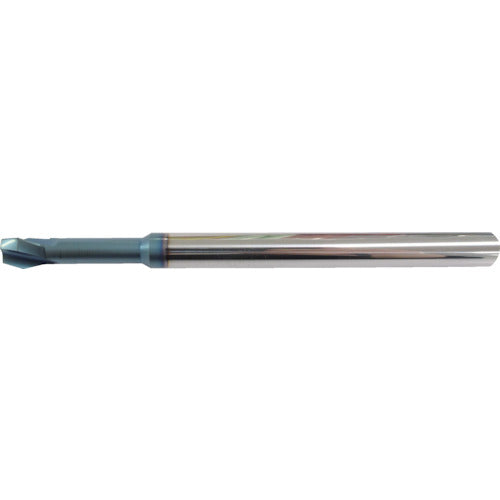

NOGA Chamfering Cutter Mini Chamfer for Diagonal Cross Holes Tip Angle 30° MC0303C12 A150 1 Piece

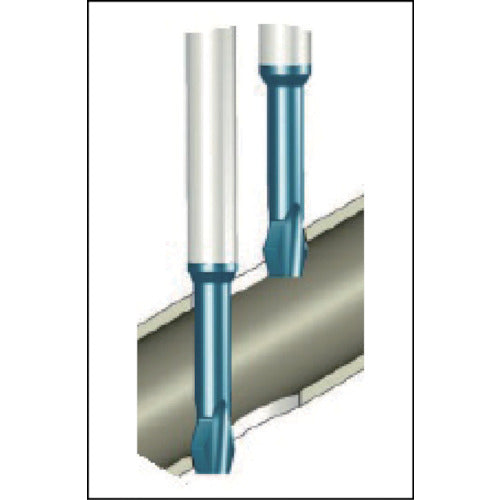

Catalog number: MC0303C12 A150 Features: ●For deburring and chamfering diagonal cross holes. ●The blade angle is 150 degrees, the cutting edge length is long, and the cutting edge has a wide range, making it effective for deburring diagonal cross holes. Applications: ●Workpiece: carbon steel, stainless steel, cast steel, aluminum, plastic, nickel alloy, titanium alloy, etc. ●Mini chamfer that can chamfer and deburr burrs in cross holes and diagonal cross holes by milling. Specifications: ●Blade diameter (mm): 3 ●Total length (mm): 39 ●Neck length (mm): 12 ●Shank diameter (mm): 3 ●Surface treatment: Titanium aluminum nitride (AlTiN) coating (MT8) ●Chamfering amount (mm): 0.6 ●Tip angle: 30° ●Body angle: 150° ●Chamfering angle: Both corners 30° Material/Finish: ●MT8: Ultra-fine grain carbide AlTiN coating
