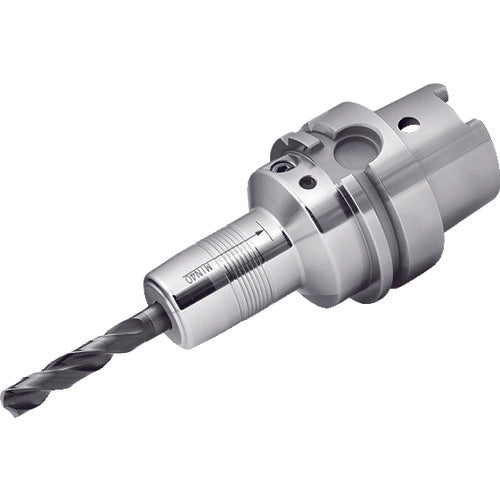

NT Tooling tool for HSK shank Power hydro chuck Shank HSK63A Grip diameter 25mm 135L HSK63A-PHC25A-135-H 1 piece

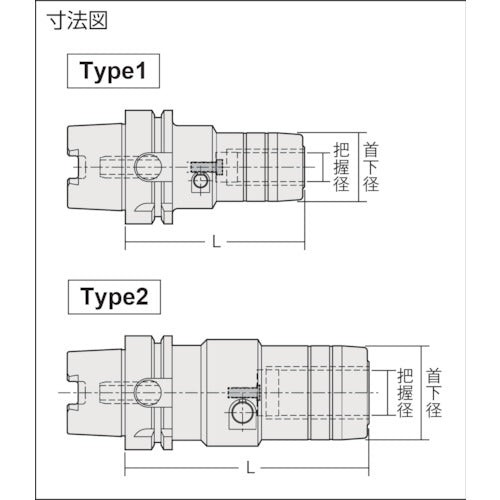

Catalog number: HSK63A-PHC25A-135-H Features: ● A handy hydro chuck that can be used like a collet holder. ● Anti-vibration effect for good cutting surface. ● Can be easily tightened with one wrench. Applications: ● Ideal for high-precision machining. Specifications: ● Shank: HSK63A ● Grip diameter (mm): 25 ● Neck diameter (mm): 52 ● TYPE: 2 ● L (mm): 135 ● Compatible wrench: L-6T ● 4d tip core runout accuracy: Within 3 μm ● HSK-63A shank type
