OH Press Caster J Type Medium Load Swivel (with Bearing) Urethane Wheel Wheel Diameter 100mm OHUJ-100 1 pc

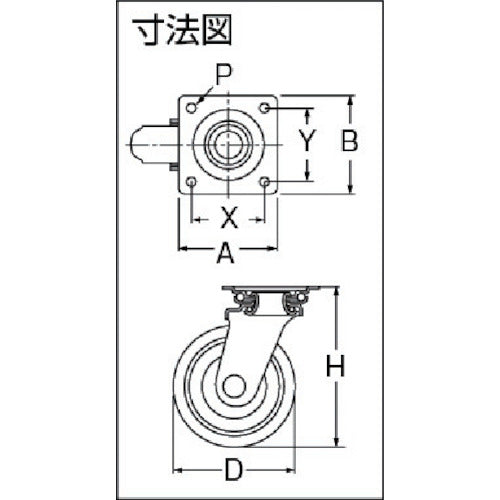

Catalogue number: OHUJ-100 Features: ●Excellent wear resistance and oil resistance. ●The hollow rotating part increases the support area, reducing wear and damage caused by loosening and rattling, and can withstand strong impacts, allowing for long-term smooth use. Specifications: ●Wheel diameter D (mm): 100 ●Type: Free-moving ●Allowable load (daN): 176 ●Allowable load (kgf): 180 ●Wheel width (mm): 32 ●Mounting height H (mm): 144 ●Mounting seat A (mm): 95 ●Mounting seat B (mm): 95 ●Mounting pitch X (mm): 68.0-73 ●Mounting pitch Y (mm): 68.0-73 ●Mounting hole diameter P (mm): 10.5 ●Allowable load (N): 1800 ●Plate type ●Bearing included ●Free-moving Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Unichrome plating finish ●Wheels: Steel wheels, urethane
