OH Press Caster JB Type Medium Load Swivel (with Bearing) Urethane Wheel with Brake Wheel Diameter 250mm OHUJB-250 1 pc

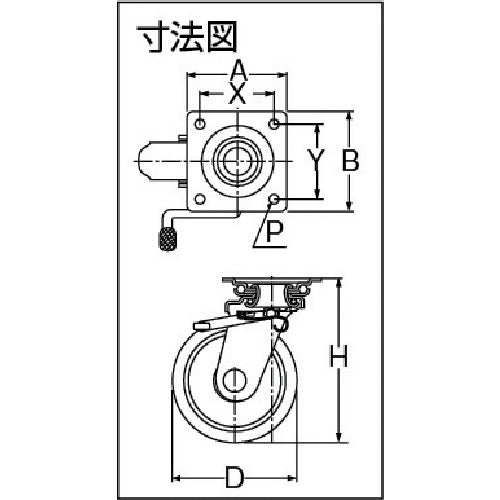

Catalog number: OHUJB-250 Features: ●Excellent wear resistance and oil resistance. ●A caster with a double stopper mechanism that simultaneously locks the rotation of the wheel and the swivel of the bracket. ●Lock and free can be easily performed with a single touch of the foot lever. ●The cart can be fixed when stopping in an inclined or vibrating place. Specifications: ● Wheel diameter D (mm): 250 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 490 ● Allowable load (kgf): 500 ● Wheel width (mm): 45 ● Mounting height H (mm): 305 ● Mounting seat A (mm): 160 ● Mounting seat B (mm): 160 ● Mounting pitch X (mm): 125 ● Mounting pitch Y (mm): 125 ● Mounting hole diameter P (mm): 14.0 ● Allowable load (N): 5000 ● Plate type ● Bearing included ● Free-wheeling (with double stopper) Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Nickel-plated finish ● Wheels: Steel wheels, urethane
