OH Press Caster K Type Medium Load Fixed (with Bearing) Urethane Wheel Wheel Diameter 200mm OHUK-200 1 pc

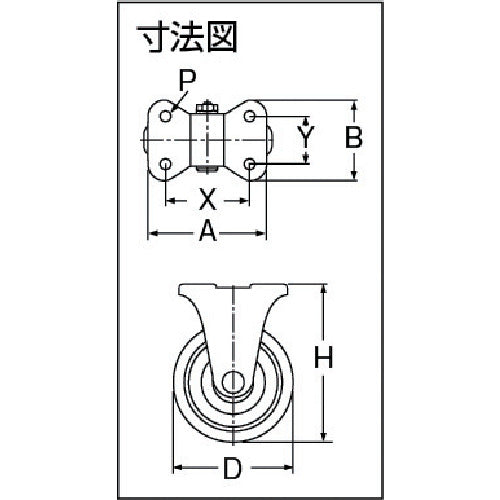

Catalogue number: OHUK-200 Features: ●Excellent wear resistance and oil resistance. Specifications: ●Wheel diameter D (mm): 200 ●Type: Fixed type ●Allowable load (daN): 392 ●Allowable load (kgf): 400 ●Wheel width (mm): 42 ●Mounting height H (mm): 250 ●Mounting seat A (mm): 155 ●Mounting seat B (mm): 102 ●Mounting pitch X (mm): 103-113 ●Mounting pitch Y (mm): 54-64 ●Mounting hole diameter P (mm): 11.0 ●Allowable load (N): 4000 ●Plate type ●Bearing included ●Fixed type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Nickel plated finish ●Wheels: Steel wheels, urethane
