OH Press Caster K Type Medium Load Fixed (with Bearing) Urethane Wheel Wheel Diameter 250mm OHUK-250 1 pc
OH Press Caster K Type Medium Load Fixed (with Bearing) Urethane Wheel Wheel Diameter 250mm OHUK-250 1 pc
Regular price
¥12,899
Regular price
Sale price
¥12,899
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

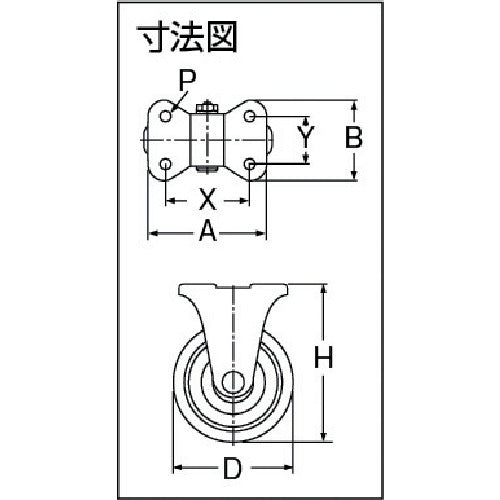

Catalogue number: OHUK-250 Features: ●Excellent wear resistance and oil resistance. Specifications: ●Wheel diameter D (mm): 250 ●Type: Fixed type ●Allowable load (daN): 490 ●Allowable load (kgf): 500 ●Wheel width (mm): 45 ●Mounting height H (mm): 305 ●Mounting seat A (mm): 200 ●Mounting seat B (mm): 140 ●Mounting pitch X (mm): 135-145 ●Mounting pitch Y (mm): 75-85 ●Mounting hole diameter P (mm): 14.0 ●Allowable load (N): 5000 ●Plate type ●Bearing included ●Fixed type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Nickel plated finish ●Wheels: Steel wheels, urethane
