OH Press Caster KB Type Medium Load Fixed (with Bearing) with Brake Urethane Wheel Wheel Diameter 200mm OHUKB-200 1 pc

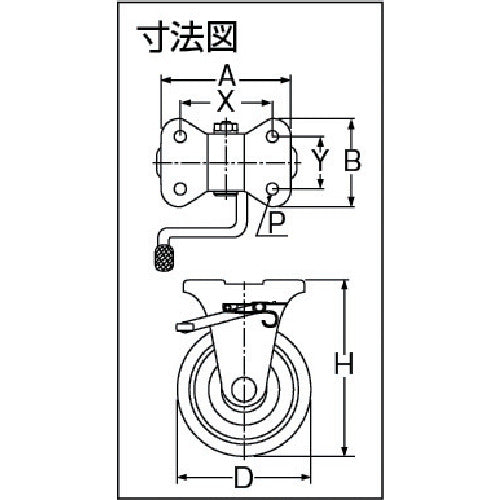

Catalog number: OHUKB-200 Features: ●Excellent resistance to wear and oil. ●Equipped with brakes on the fixed cart. When used in conjunction with OHJB, all four wheels are locked, increasing the fixing force of the cart. ●Brakes can be easily locked and unlocked with a single touch of the foot lever. ●The cart can be fixed when stopping on an incline or in a place with vibration. Specifications: ● Wheel diameter D (mm): 200 ● Type: Fixed type (with stopper) ● Allowable load (daN): 392 ● Allowable load (kgf): 400 ● Wheel width (mm): 42 ● Mounting height H (mm): 250 ● Mounting seat A (mm): 155 ● Mounting seat B (mm): 102 ● Mounting pitch X (mm): 103-113 ● Mounting pitch Y (mm): 54-64 ● Mounting hole diameter P (mm): 11.0 ● Allowable load (N): 4000 ● Plate type ● With bearings ● Fixed type (with stopper) Material / Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Nickel plated finish ● Wheels: Steel wheels, urethane
