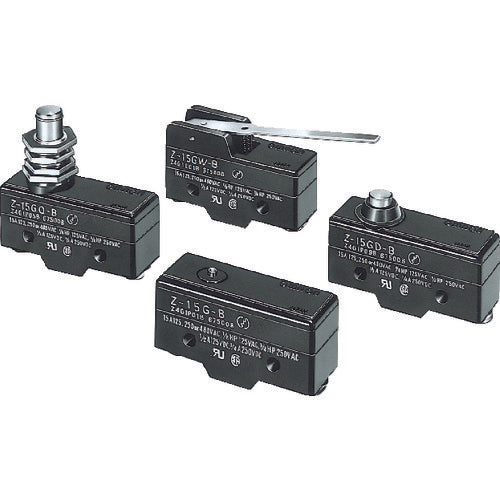

OMRON Micro Switch Panel Mount Cross Roller Push Button Type Screw Terminal Z-15GQ21-B 1 pc

Catalog number: Z-15GQ21-B Features: ●A best-selling basic switch that boasts high accuracy and a wide variety of options. ●Large breaking capacity of 15A, yet high accuracy (good repeatability). Specifications: ●Actuator shape: Panel-mounted cross roller push button type ●Terminal type: Screw-tightened terminal ●Length (mm): 49.2 ●Width (mm): 17.45 ●Height (mm): Maximum 58.9 ●Actuator type: Panel-mounted cross roller push button type ●Terminal type: Screw-tightened terminal ●Contact spacing: 0.5mm ●Contact configuration 1c, rivet, silver ●Allowable inrush current Normally closed: Maximum 30A Normally open: Maximum 15A ●Electric shock protection class Class［［Ｒ１］］
