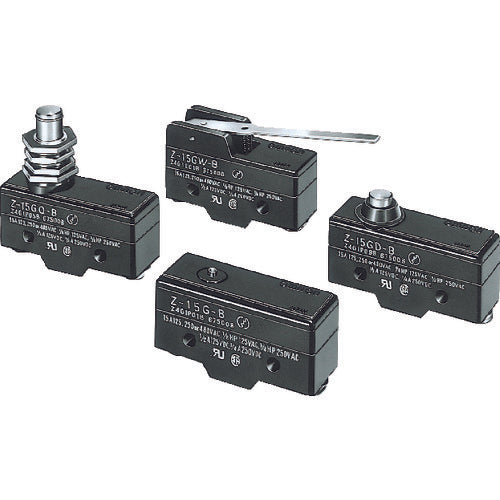

OMRON Micro Switch Hinge Roller Short Lever Type Screw Terminal Z-15GW22-B 1 pc

Catalog number: Z-15GW22-B Features: ●A best-selling basic switch that boasts high accuracy and a wide variety of options. ●Large breaking capacity of 15A, yet high accuracy (good repeatability). Specifications: ●Actuator shape: Hinge, roller, short lever type ●Terminal type: Screw-tightened terminal ●Length (mm): 49.2 ●Width (mm): 17.45 ●Height (mm): Maximum 41.7 ●Actuator type: Hinge, roller, short lever type ●Terminal type: Screw-tightened terminal ●Contact spacing: 0.5mm ●Contact configuration 1c, rivet, silver ●Allowable inrush current Normally closed: Maximum 30A Normally open: Maximum 15A ●Electric shock protection class Class［［Ｒ１］］
