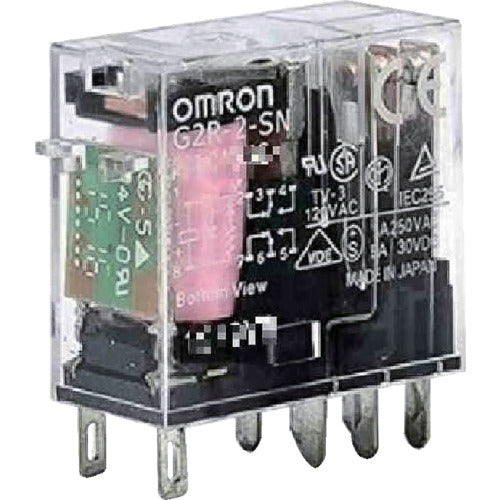

OMRON General Relay G2R-2-SN DC24 1 piece

Catalog number: G2R-2-SN DC24 Features: ●2-pole 5A general-purpose mini power relay. ●Safe design with a coil-contact withstand voltage of 5,000V and surge voltage of 10,000V. ●Improved identification of AC/DC specifications by changing the color of the AC/DC coil tape. ●Comes with a latching lever that is convenient for circuit checks. (Model G2R-□-S(S)) Specifications: ●Rated voltage (V): DC24 ●Operation indicator: Built-in type ●Length x width x height (excluding pins): 29 x 13 x 28 ●Number of contact poles: 2 poles ●Terminal shape: Plug-in terminal ●Contact configuration: C contact ●Contact mechanism: Single ●Rated overcurrent: 5A
