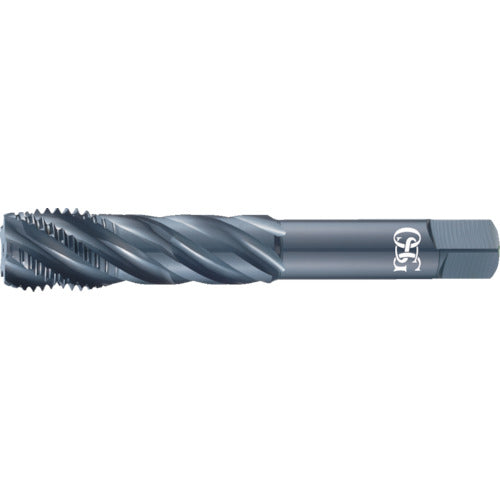

OSG Spiral Tap for Large Diameter Machining, for Vertical Machining Machines, 8324394, VXL-SFT-STD-M27X3, 1 piece

Catalog number: VXL-SFT-STD-M27X3 Features: ●Ideal for machining large diameter screws with vertical machining centers. Applications: ●For blind hole machining. ●Workpiece: low, medium and high carbon steel, alloy steel, tempered steel (up to 35HRC), cast steel, ductile cast iron, thermoplastic plastic. Specifications: ●Accuracy: OH5 ●Accuracy notation: STD ●Nominal size: M27 ●Pitch (mm): 3 ●Thread length (mm): 24 ●Total length (mm): 160 ●Shank diameter (mm): 20 ●Shank square section (mm): 15 ●Pilot hole diameter (mm): 24 ●Number of teeth: 2.5 teeth ●Machining thread: Metric thread ●Surface treatment: Homo treatment Material/Finish: ●High speed steel (HSS-E)
