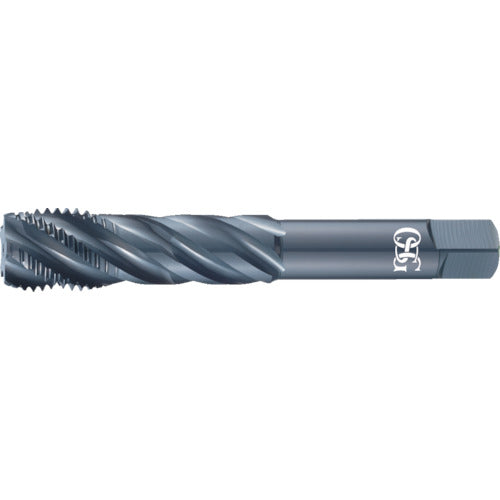

OSG Spiral Tap for Large Diameter Machining, for Vertical Machining Machines, 8324418, VXL-SFT-STD-M39X4, 1 Piece

Catalog number: VXL-SFT-STD-M39X4 Features: ●Ideal for machining large diameter screws on vertical machining centers. Applications: ●For machining blind holes. ●Workpiece: low, medium and high carbon steel, alloy steel, tempered steel (up to 35HRC), cast steel, ductile cast iron, thermoplastic plastics. Specifications: ●Accuracy: OH6 ●Accuracy notation: STD ●Nominal dimensions: M39 ●Pitch (mm): 4 ●Thread length (mm): 32 ●Total length (mm): 200 ●Shank diameter (mm): 30 ●Shank square section (mm): 23 ●Pilot hole diameter (mm): 35 ●Number of teeth: 2.5 teeth ●Machining thread: Metric thread ●Surface treatment: Homo treatment Material/Finish: ●High speed steel (HSS-E)
