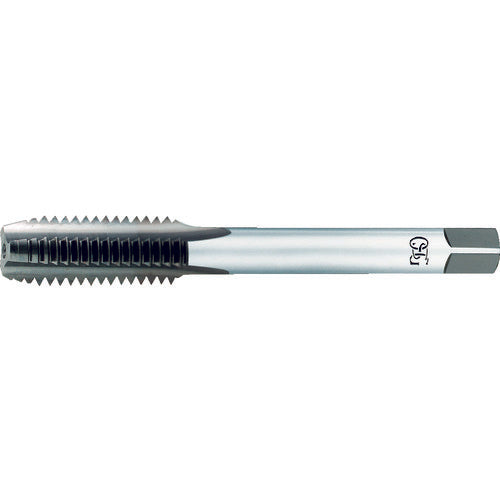

OSG Tap 22810 OTT-1.5P-STD-M3X0.5 1 piece

Catalog number: OTT-1.5P-STD-M3X0.5 Features: ●Due to the durability of the cutting edge and the breaking of cutting chips, it is ideal for mass threading. ●Can be used for both through holes and blind holes. ●Ideal for mass threading of ordinary cast iron, tough cast iron, thermosetting resin, brass castings, etc. using high-precision automatic machines. Applications: ●Cutting materials: cast iron, bronze, thermosetting plastic, ductile cast iron, brass, brass castings, aluminum alloy castings, magnesium alloy castings, zinc alloy castings Specifications: ●Tip: Top ●Accuracy: OH3 ●Accuracy notation: STD ●Nominal dimensions: M3 ●Pitch (mm): 0.5 ●Thread length (mm): 11 ●Total length (mm): 46 ●Shank diameter (mm): 4 ●Shank square section (mm): 3.2 ●Counterbore diameter (mm): 2.5 ●Machined thread: Metric thread ●Surface treatment: Non-coated ●Tap grade: OH grade Material/Finish: ●Carbide
