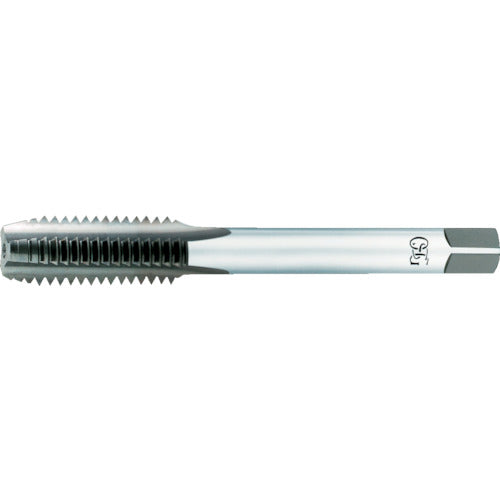

OSG Tap 22837 OTT-1.5P-STD-M12X1.75 1 piece

Catalog number: OTT-1.5P-STD-M12X1.75 Features: ●Due to the durability of the cutting edge and the breaking of cutting chips, it is ideal for mass threading. ●Can be used for both through holes and blind holes. ●Ideal for mass threading of ordinary cast iron, tough cast iron, thermosetting resin, brass castings, etc. using high-precision automatic machines. Applications: ●Cutting materials: cast iron, bronze, thermosetting plastic, ductile cast iron, brass, brass castings, aluminum alloy castings, magnesium alloy castings, zinc alloy castings Specifications: ●Tip: Top ●Accuracy: OH5 ●Accuracy notation: STD ●Nominal dimensions: M12 ●Pitch (mm): 1.75 ●Thread length (mm): 29 ●Total length (mm): 82 ●Shank diameter (mm): 8.5 ●Shank square section (mm): 6.5 ●Counterbore diameter (mm): 10.25 ●Machined thread: metric thread ●Surface treatment: non-coated ●Tap grade: OH grade Material/Finish: ●Carbide
