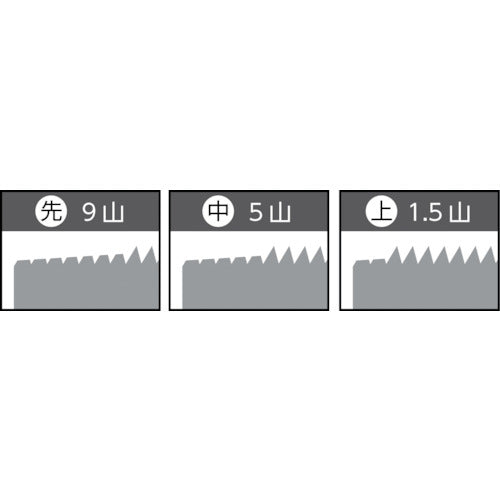

Catalog number: HT2-S-M1.7X0.35 Features: ● A general tap that is used in a wide range of applications. ● Can be used for both through holes and blind holes. Applications: ● Workpiece: Medium carbon steel, aluminum alloy, etc. Specifications: ● Tip: Medium ● Precision: JIS Class 3 ● Nominal size: M1.7 ● Pitch (mm): 0.35 ● Thread length (mm): 13 ● Total length (mm): 36 ● Shank diameter (mm): 3 ● Shank square section (mm): 2.5 ● Pilot hole diameter (mm): 1.35 ● Machined thread: Metric thread ● Surface treatment: Non-coated Material/Finish: ● Alloy tool steel (SKS)
