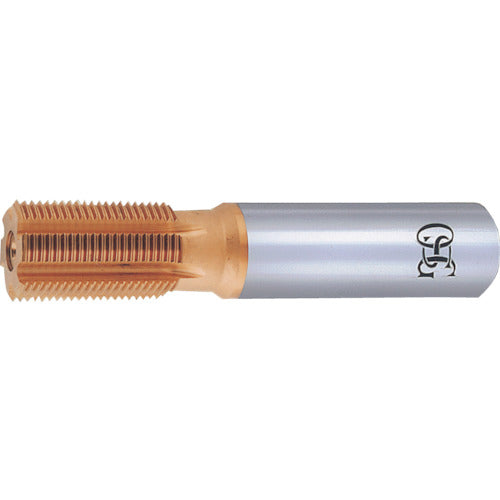

OSG Tap 8306118 PNGT-20X32XRC11-125X32X20 1 piece

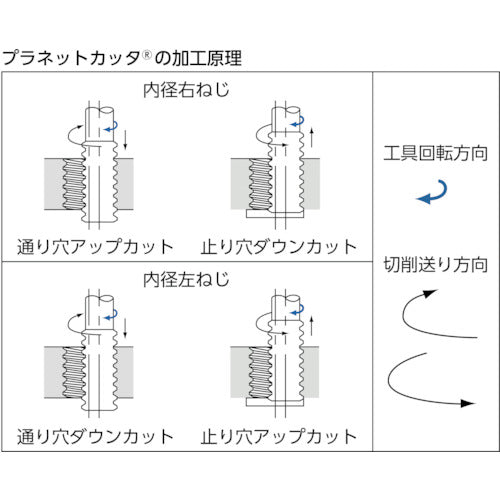

Catalog number: PNGT-20X32XRC11-125X32X20 Features: ●One tool can process threads with different nominal dimensions if they have the same pitch, and can process both right-handed and left-handed threads. Applications: ●Cutting materials: carbon steel, alloy steel, stainless steel, cast steel, cast iron, ductile cast iron, thermosetting plastics, thermoplastic plastics, copper, brass, brass castings, bronze, rolled aluminum, aluminum alloy castings, magnesium alloy castings, zinc alloy castings. Specifications: ●Nominal size: 1-2 ●Number of teeth: 11 ●Blade diameter (mm): 20 ●Blade length (mm): 32 ●Total length (mm): 125 ●Number of blades (pieces): 5 ●Shank diameter (mm): 20 ●Neck length (mm): 42.5 ●Surface treatment: TiN coating ●Total length L: 125 ●Blade length l: 32 ●Shank diameter d: 20 Material/Finish: ●High-speed steel (HSS-Co)
