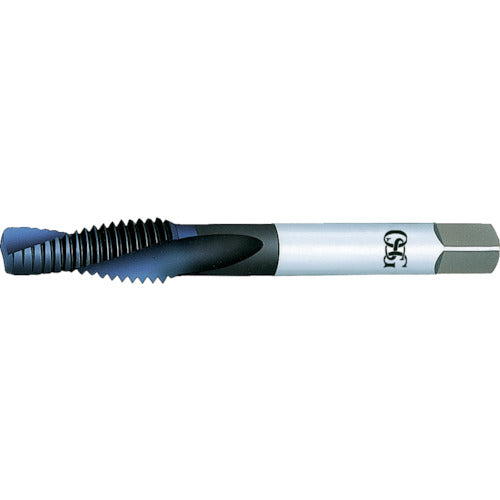

OSG Point Tap Ultra Synchro Tap (for metric threads) M10 Pitch 1.25mm 8311343 US-AL-RFT-STD-M10X1.25 1 piece

Catalog number: US-AL-RFT-STD-M10X1.25 Features: ●This is a V-coated screw that is highly resistant to wear and adhesion, and is designed exclusively for machines with a complete lead feed mechanism. It allows for ultra-high speed screw machining of aluminum alloys and other materials. Applications: ●For through hole machining. ●Workpiece: Aluminum alloy castings, rolled aluminum, zinc alloy castings, copper. Specifications: ●Accuracy: OH4 ●Accuracy notation: STD ●Nominal dimensions: M10 ●Pitch (mm): 1.25 ●Thread length (mm): 24 ●Total length (mm): 75 ●Shank diameter (mm): 8 ●Shank square section (mm): 6 ●Pilot hole diameter (mm): 8.75 ●Number of teeth: 6 teeth (M18 and above: 5 teeth) ●Machining screw: Metric screw Material/Finish: ●High speed steel (HSS-E)
