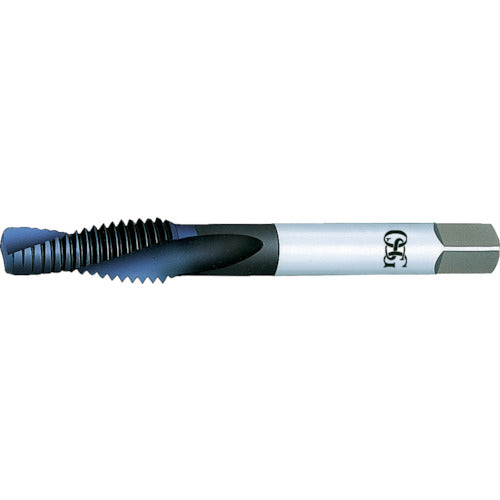

OSG Point Tap Ultra Synchro Tap (for metric threads) M10 Pitch 1.5mm 8311339 US-AL-RFT-STD-M10X1.5 1 piece

Catalog number: US-AL-RFT-STD-M10X1.5 Features: ●V-coated for excellent wear resistance and adhesion resistance for machines with a complete lead feed mechanism, allowing for ultra-high speed screw machining of aluminum alloys and other materials. Applications: ●For through hole machining. ●Workpiece: Aluminum alloy castings, aluminum rolled materials, zinc alloy castings, copper. Specifications: ●Accuracy: OH4 ●Accuracy notation: STD ●Nominal dimensions: M10 ●Pitch (mm): 1.5 ●Thread length (mm): 24 ●Total length (mm): 75 ●Shank diameter (mm): 8 ●Shank square section (mm): 6 ●Pilot hole diameter (mm): 8.5 ●Number of engagement threads: 6 threads (M18 and above: 5 threads) ●Machined threads: Metric threads Material/Finish: ●High speed steel (HSS-E)
