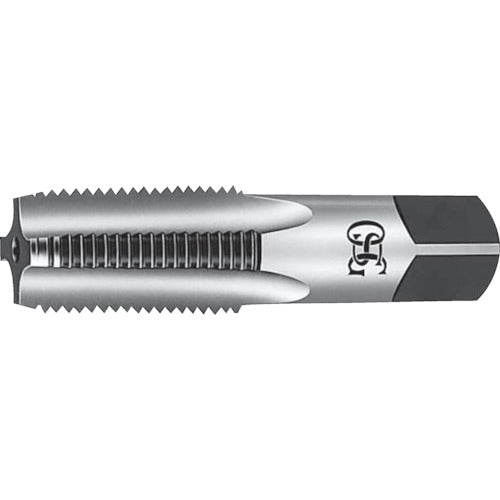

OSG Pipe Taper Tap General Purpose PT1/4 23592 TPT-H-PT1/4 1 piece

Catalog number: TPT-H-PT1/4 Features: ● General tap for pipe taper threads, used in a wide range of applications. Applications: ● Workpiece: Medium and high carbon steel, cast iron, cast steel, ductile cast iron, copper, brass, brass castings, rolled aluminum, aluminum alloy castings, magnesium alloy castings, zinc alloy castings. Specifications: ● Precision: JIS Class 2 ● Nominal dimensions: 1/4 ● Number of threads: 19 ● Thread length (mm): 28 ● Total length (mm): 62 ● Shank diameter (mm): 11 ● Shank square section (mm): 9 ● Pilot hole diameter (mm): 10.9 ● Machining thread: Sealing taper, internal thread ● Number of engagement threads: 2.5 ● Surface treatment: Non-coated ● Length to reference diameter (mm): 21 ● Tap grade: JIS grade Material/Finish: ● High speed steel (HSS)
